  •   Powered by Tibbo OS (TiOS).
  •   10/100BaseT auto-MDIX Ethernet port (no magnetics):
  •   Connect any suitable external jack and magnetics; or

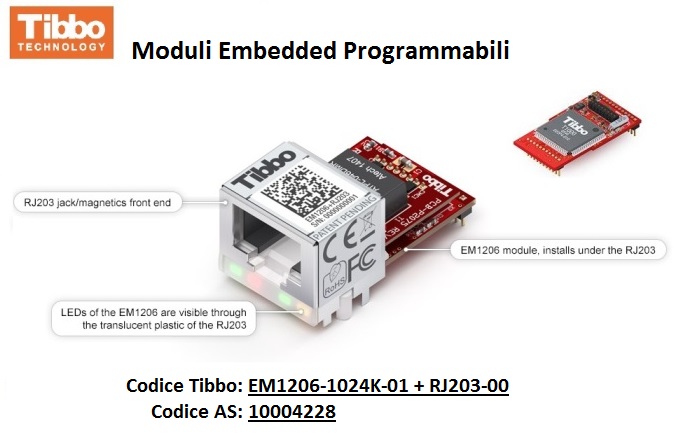

  •   Combine the EM1206 with the RJ203 jack/magnetics front-end.
  •   Optional Wi-Fi interface (requires the GA1000 add-on module).
  •   Can control a GPRS modem* (such as the SIM900).
  •   Four high-speed serial ports (CMOS):
  •   Baudrates of up to 921,600bps;
  •   None/even/odd/mark/space parity modes;
  •   7 or 8 bits/character;
  •   Full-duplex mode with RTS/CTS and XON/XOFF flow control;
  •   Half-duplex mode with direction control;
  •   Encoding and decoding of Wiegand and clock/data streams.
  •   17 general-purpose I/O lines; 8 lines can work as interrupts.
  •   Square wave output (can be used for buzzer* control).
  •   4 synchronous serial ports with SPI and I2C modes.
  •   Supports LCD and OLED panels*.
  •   Supports matrix and binary output keypads*.
  •   RTC with dedicated backup power input.
  •   22KB SRAM for Tibbo BASIC/C variables and data.
  •   1MB flash memory for TiOS, application code, and file system.
  •   2048-byte EEPROM for data storage.
  •   Four status LEDs onboard:
  •   Green and red main status LEDs;
  •   Yellow Ethernet link LED;
  •   Green 100Mb LED.
  •   Two control lines for attaching external green and red main status LEDs.
  •   Software-controlled PLL for selecting high or low speed.
  •   Reliable power-on/ brown-out reset circuit.
  •   Power: 230mA @ 3.3V (100Base-T mode, full speed).
  •   Dimensions (LxWxH): 33.4 x 18.1 x 4.2mm.
  •   Dimensions with RJ203 (LxWxH): 34.4 x 20.0 x 15.5mm.
  •   Operating temperature range: -40 ~ +70°C.
  •   Firmware is upgradeable through the serial port or network.
  •   Tibbo BASIC/C application can be debugged through the Ethernet LAN.
  •   CE- and FCC-certified.

*Must be connected externally.



Create powerful, network-enabled applications in Tibbo BASIC and Tibbo C. Learn more...

Platform objects:

  •   beep — generates buzzer patterns.
  •   button — monitors the MD (setup) line.
  •   fd — manages the flash memory file system and direct sector access.
  •   io — handles I/O lines, ports, and interrupts.
  •   kp — works with matrix and binary keypads.
  •   lcd — controls graphical display panels.
  •   net — controls the Ethernet port.
  •   pat — "plays" patterns on up to five LED pairs.
  •   ppp — accesses the Internet over a serial modem (GPRS, etc.).
  •   pppoe — accesses the Internet over an ADSL modem.
  •   romfile — facilitates access to resource files (fixed data).
  •   rtc — keeps track of date and time.
  •   ser — controls serial ports (UART, Wiegand, clock/data modes).
  •   sock — socket comms (up to 16 UDP, TCP, and HTTP sessions).
  •   ssi — controls serial synchronous interface channels (SPI, I2C...).
  •   stor — provides access to the EEPROM.
  •   sys — in charge of general device functionality.
  •   wln — handles the Wi-Fi interface.

Function Groups: 27 string functions, 8 date/time conversion functions, encryption/hash calculation functions (RC4, MD5, SHA-1), and more.

Variable Types: Signed and unsigned 8-bit, 16-bit, and 32-bit types; floating point and string types; user-defined arrays and structures.
