 "VT11")

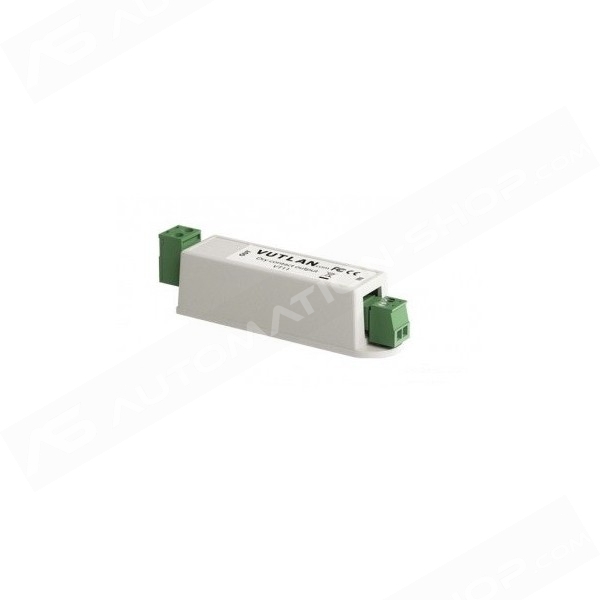

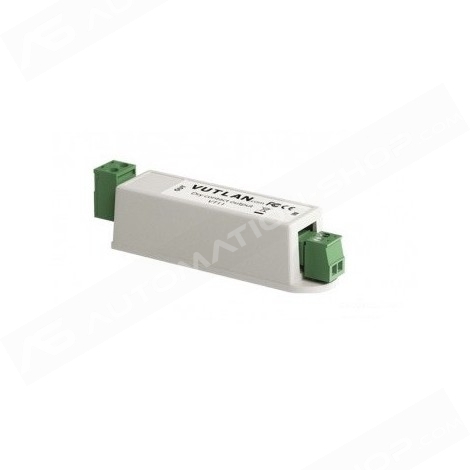

VT11 - VUTLAN
Dry contact output, Extension to 12V relay outputs
38,00 € IVA Esclusa
Standard - Nuovo
Disponibile
Relay switchable contact. Can be used together with equipment, for example for switching ON/OFF air conditioners. Can control power for magnetic locks, bolt locks, solenoid electromagnets, siren, light source, heater and etc.
Can be connected to any monitoring system or device with 12V outputs.
Max distance from the unit is 200 meters.
Max switching voltage: 250VAC / 30VDC
Max switching current: 5A
Max switching power: 1250VA / 150W
Min. contact load: No gold plated: 5VDC 10mA
Installation: Connecting 12V devices to 12V outputs
Product Dimensions: (Length, Width, Height) 60X18X18 Mm
Packaging Weight: 60 G
Power Consumption: 12 MW
Operating Temperature : Min. -50° C - Max.+105° C
Mounting Possibilities: Countersink Screw & Sticker Included For Wall Mounting, In Rack Mounting
Max. Distance From The Unit: 200 M.
HS Code: 9025 11 800
Package Includes: X2 Wire Cable (1 Meter), Screw M5 L15mm, X2 3.81mm 2P Terminal, X2 5.08 2P Terminal, Sticker
Special Features: Max. Switching Voltage: 250VAC / 30VDCMax Switching Current : 5AMax. Switching Power: 1250VA / 150WMin. Contact Load: No Gold Plated, 5VDC 10mA
Inputs Terminals: X2 Wire Terminal, 12V
Outputs Terminals: X2 Wire Terminal Switching Contact
Status Indicators: LED Indicator For Status
Can be connected to any monitoring system or device with 12V outputs.
Max distance from the unit is 200 meters.
Max switching voltage: 250VAC / 30VDC
Max switching current: 5A
Max switching power: 1250VA / 150W
Min. contact load: No gold plated: 5VDC 10mA
Installation: Connecting 12V devices to 12V outputs
Product Dimensions: (Length, Width, Height) 60X18X18 Mm
Packaging Weight: 60 G
Power Consumption: 12 MW
Operating Temperature : Min. -50° C - Max.+105° C
Mounting Possibilities: Countersink Screw & Sticker Included For Wall Mounting, In Rack Mounting
Max. Distance From The Unit: 200 M.
HS Code: 9025 11 800
Package Includes: X2 Wire Cable (1 Meter), Screw M5 L15mm, X2 3.81mm 2P Terminal, X2 5.08 2P Terminal, Sticker
Special Features: Max. Switching Voltage: 250VAC / 30VDCMax Switching Current : 5AMax. Switching Power: 1250VA / 150WMin. Contact Load: No Gold Plated, 5VDC 10mA
Inputs Terminals: X2 Wire Terminal, 12V
Outputs Terminals: X2 Wire Terminal Switching Contact
Status Indicators: LED Indicator For Status
