 "UT-2209")

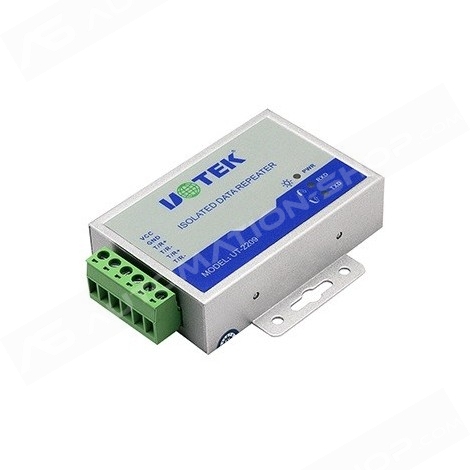

UT-2209 - UTEK
Industrial RS-485 Repeater with Isolation
31,00 € IVA Esclusa
Standard - Nuovo
Disponibile
-Standards: RS-485 TIA/EIA
-Connector: RS-485 2-pin terminal block input
RS-485 2-pin terminal block output
- Protection: RS-485 each line with 600W lightning, surge, ±15KV ESD protection
- Working mode: asynchronous half-duplex
- LEDs for indicating PWR TXD, and RXD activity
-Transmission media: twisted-pair or shielded cable
- Baud rate: 300BPS-115.2K BPS
-Dimension: 89x74x22mm
- Operating temperature: -40? to 85?
- Relative humidity: 5% to 95 %( Non-condensing)
-Works with all communication software, plug & play
-Transmission distance: 0-1,200m (115,200bps-9,600bps)
-Connector: RS-485 2-pin terminal block input
RS-485 2-pin terminal block output
- Protection: RS-485 each line with 600W lightning, surge, ±15KV ESD protection
- Working mode: asynchronous half-duplex
- LEDs for indicating PWR TXD, and RXD activity
-Transmission media: twisted-pair or shielded cable
- Baud rate: 300BPS-115.2K BPS
-Dimension: 89x74x22mm
- Operating temperature: -40? to 85?
- Relative humidity: 5% to 95 %( Non-condensing)
-Works with all communication software, plug & play
-Transmission distance: 0-1,200m (115,200bps-9,600bps)
Datasheet 10004588 |
Documentazione (432.79k) |
